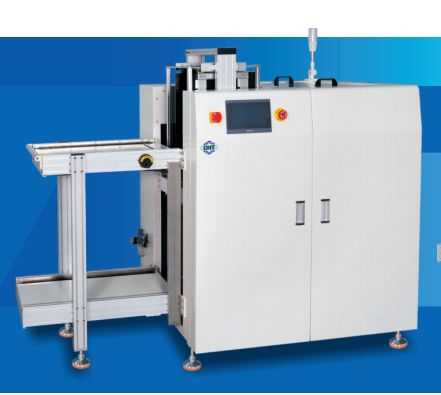

Semiconductor,production line board board device/ Vacuum Bare Loader

Product characteristics

1, Top board device of SMT production line circuit board.

2, PLC control,color HMl operation system.

3, Stepping motor push plate structure, pushing plate speed is adjustable.

4, Auxiliary positioning braking system, accurate positioning, fast lifting speed and highproduction efficiency.

5, PLC control system, multiple electrical circuit protection design which are security and stability.

6, Sound and light alarm system, abnormal information text prompts, easy operation andmaintenance.

7, Standard SMEMA signal communication.

8, Standard two upper modes are especially suitable for production of single-line mode withdouble panel.

Product Technical Parameters

1, No.of magazine:Upper conveyor : 1nos.Lower conveyor : 2nos.

2, Time for feed PCBs:Approx.6 seconds or specified by customer.

3, Magazine change overtime:Approx.35 seconds or specified by customer.

4, Indexing pitch:10,20,30,40 mm pitch orspecified by customer.

5, Powersupply and electricload:220V(AC,SP)600V/A max.

6, Airpressure and air flow:4-6bar,Up to 0.2 /min.

7, Thickness of PBCs:0.6mm min.

Shenzhen Jingji Technology Co., Ltd was established in 2006. It is a 19 years history in pipe rack system industry as professional supplier which incorporates with industry and trade. Our company has two production bases under the Holding for manufacturing different pipe rack parts.

With sharpened viewing angle insight into the global industrial development trend, Jingji leads the accurate direction of industrial development. We promote the internationalized DIY and the JIT management mode with sustaining effort to help companies achieve lean production and supply chain optimization while improving operational efficiency

With more than ten years of painstaking efforts, Jingji is developing vigorously and has become an integrated enterprise specialized in industrial storage equipment, flexible production equipment and automation equipment together with full operations from design to production, sales to installation and to service. Jingji has won various honorary titles like "China’s well-known enterprises", "Chinese famous brand", "quality, service, reputation AAA unit", " China green environmental protection products ", etc

Jingji’s perfect marketing service system brings high-level and high-value-added service
