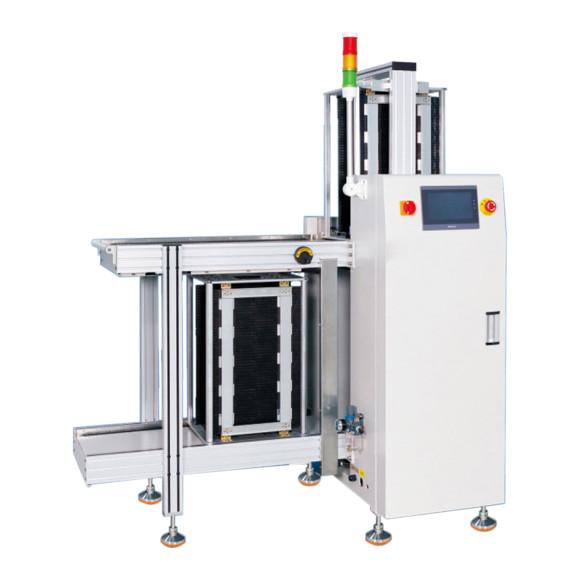

Semiconductor,production line board board device/Automatic Loader

Product characteristics

1, SMT production line circuit board upper board device.

2, PLC control, color HMl operation system.

3, Stepping motor push plate structure, pushing plate speed is adjustable.

4, Auxiliary positioning braking system, accurate positioning, fast lifting speed and highproduction efficiency.

5, Multiple electrical distribution circuit protection, safe and reliable.

6, Sound and light alarm system, abnormal information text prompts, easy operation andmaintenance.

7, Standard SMEMA signal communication.

Product Technical Parameters

1, No.ofmagazine:Upperconveyor:2nos.Lower conveyor:2nos.

2, Timeforfeed PCBs:Approx.6seconds orspecified by cuslomer.

3, Magazine change over time:Approx.35secondsorspecifled by customer.

4, Indexing pitch:10,20,30,40 mmpitchorspecified by customer.

5, Power supply and electric load:220V(AC,SP)300VAmax.

6, Airpressure and air flow:4~6bar,max.0.1l/min/max.0.2l/min

7, Thickness of PBCs:0.6mm min
